Concrete Floor Thickness Guidelines for Car Hoist Setup

Key Considerations for Installing a Durable Car Hoist in Your Garage

When you are planning to install a car hoist in your garage, it is essential to ensure that your concrete floor meets the stringent specifications necessary for a successful installation. A robust and stable foundation is not only critical for the optimal functionality of the hoist but also vital for the safety of your vehicles and the individuals operating the equipment. By adequately preparing the site and strictly following installation guidelines, you can significantly enhance both the performance and longevity of your car hoist, ultimately protecting your investment.

Most car hoists require a concrete slab that is at least 100mm (4 inches) thick. This specific thickness is fundamental as it allows for the uniform distribution of the weight from both the vehicle and the hoist, thereby minimizing the potential for cracking or sinking over time. For heavy-duty hoists, it is wise to consider a thicker concrete slab, potentially reaching up to 150mm (6 inches), to ensure optimal performance and safety in all lifting operations. Investing in the right thickness will provide peace of mind and ensure reliability.

Comprehensive Steps to Determine the Concrete Thickness Needed for Your Car Hoist

The thickness of your concrete floor is a crucial factor in ensuring the safe installation and operation of a car hoist. Several factors must be considered when evaluating the appropriate depth for your concrete slab to guarantee that it can adequately support the loads it will endure during regular use. Understanding these critical elements can help you avoid costly mistakes and significantly enhance the safety of your garage setup.

Evaluating Load Capacity for Your Car Hoist Installation

Car hoists exert considerable stress on the concrete floor beneath them, making it vital to fully understand the total weight your concrete floor must support. This assessment includes not just the weight of the vehicle but also the weight of the hoist itself, which can add a significant load to the floor. Failing to adequately assess these weights can lead to structural issues and safety concerns.

A standard passenger car typically weighs between 1,500 to 2,000 kg, while the hoist might contribute an additional 500 to 1,000 kg. Moreover, it is prudent to include an extra weight buffer to account for unforeseen circumstances, ensuring that the structure can handle any unexpected loads. This thorough evaluation is essential for safeguarding both the equipment and the users.

For the majority of home garages, a concrete thickness between 100 mm and 150 mm is generally sufficient. However, if you anticipate lifting significantly heavier vehicles, it may be necessary to opt for a thicker slab to ensure safety and stability during operation. This decision can greatly impact the overall success of your installation.

Consulting with a structural engineer is a wise move, as they possess the expertise needed to provide tailored advice and assist you in calculating the precise thickness required based on your unique circumstances and specific requirements. Their insights can be invaluable in achieving the safest setup possible.

Examining Various Types of Car Hoists and Their Concrete Thickness Requirements

It is crucial to recognize that different types of car hoists come with unique requirements concerning concrete thickness. Two-post lifts and four-post lifts are two popular options that homeowners often consider when incorporating a car hoist into their garage setup. Understanding the differences between these systems is key to making an informed decision.

Two-post lifts typically exert pressure on specific points, which necessitates a thicker concrete slab, often around 150 mm or more, to effectively accommodate the concentrated load. This thickness is essential for ensuring that the hoist operates safely and efficiently.

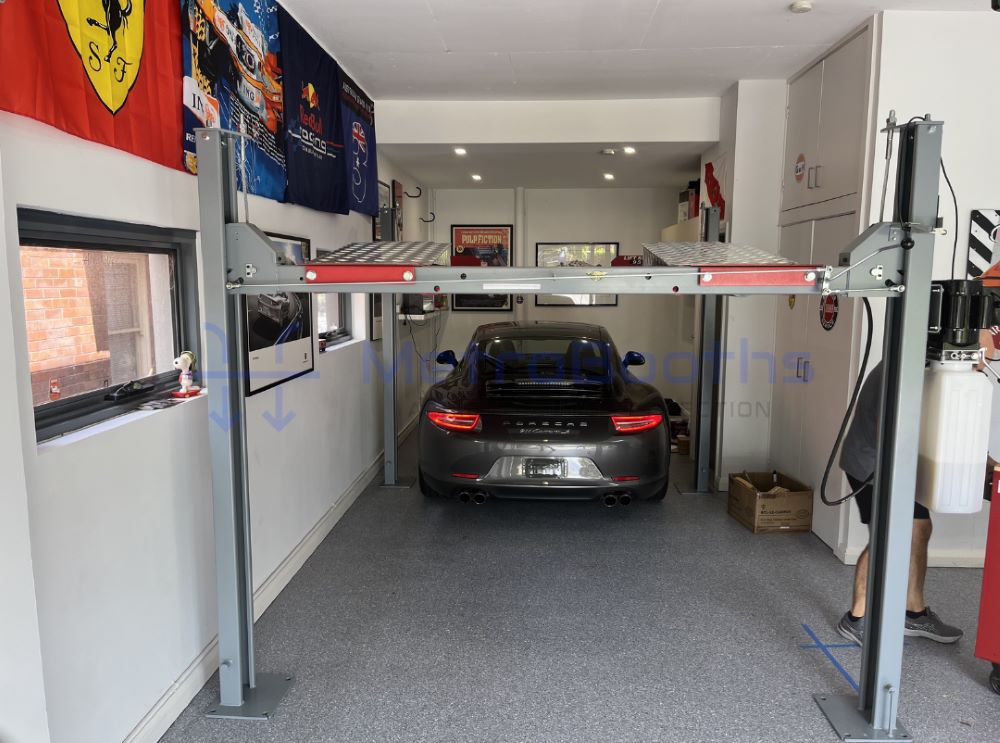

On the other hand, four-post lifts tend to distribute weight more evenly across a larger area, allowing them to function effectively with a slightly thinner slab, generally within the range of 100 mm to 125 mm. Recognizing these distinctions is crucial for your planning and installation process, as it will inform the construction of your garage floor.

Always consult the manufacturer's specifications for the hoist you are considering, as they will typically outline the minimum concrete thickness required for safe operation. Adhering to these manufacturer guidelines is paramount for ensuring optimal performance and the longevity of your equipment.

Keep in mind that these recommendations serve as general guidelines. Your specific circumstances may vary based on the configuration of your garage and the types of vehicles you plan to lift, making it essential to tailor your approach to your individual needs.

Recognizing the Significance of Concrete Strength and Reinforcement Techniques

The strength of your concrete is just as vital as its thickness. Stronger concrete can often be effectively utilized at a thinner depth while still providing ample support for heavy loads, especially in the context of a car hoist installation. By prioritizing quality materials, you can achieve a safer and more reliable setup.

It is recommended to use concrete with a compressive strength of at least 25 MPa for a car hoist installation. Many industry experts suggest opting for concrete with a strength of up to 32 MPa for applications that involve heavy-duty use and frequent vehicle lifting. This choice can significantly enhance the durability and safety of your installation.

Incorporating reinforcement techniques is essential for greatly improving the durability of your concrete. The addition of steel mesh or rebar can significantly enhance the overall strength of your concrete floor. Consequently, this could allow you to utilize a thinner slab and still ensure that it can effectively support heavy loads during operation.

For most home garages, SL82 mesh presents a reliable option. It delivers adequate strength for the majority of car hoists without incurring excessive costs, which is an important consideration for budget-conscious homeowners. Balancing quality and affordability can lead to successful outcomes.

If you are concerned about potential cracking, consider integrating fibers into your concrete mix. This addition can help mitigate the formation and propagation of small cracks over time, contributing to the overall longevity of your installation and ensuring that your investment remains protected.

Critical Installation Factors for Ensuring Successful Car Hoist Operation

When it comes to installing a car hoist, meticulous site preparation and consistent maintenance of the floor are of paramount importance. By paying careful attention to concrete specifications and ensuring proper floor care, you can guarantee the safe and prolonged operation of your hoist, ultimately safeguarding your investment in both the equipment and your garage setup.

Essential Site Preparation and Concrete Pouring Techniques for Car Hoist Installation

Before the installation of your car hoist, it is crucial to verify that your concrete floor meets all necessary specifications. Most hoists require a slab that is at least 100mm thick and constructed with 3000 PSI concrete. Additionally, the slab must be perfectly level and free of any cracks to ensure optimal performance and safety during use. This attention to detail is fundamental for preventing future complications.

For new concrete pours, it is essential to utilize steel reinforcing mesh and allow the concrete to cure for a minimum of 28 days. Furthermore, ensure that the area being poured is larger than the footprint of the hoist to provide adequate support and stability during operation. This measure will enhance the overall safety of your installation.

Avoid placing the hoist over expansion joints or weak areas of the concrete. If you are uncertain about the strength and integrity of your floor, it is highly advisable to consult a professional who can accurately assess its condition and provide recommendations tailored to your situation.

Ongoing Maintenance Necessities After Installing Your Car Hoist

Once your car hoist is installed, it becomes crucial to regularly monitor the condition of the concrete surrounding it. Keep an eye out for any cracks, chips, or signs of stress, and address any issues promptly to prevent larger complications that could affect the functionality and safety of your hoist. This proactive approach is essential for ensuring long-term reliability.

It is vital to clean up any oil and fluid spills immediately, as these substances can weaken the concrete over time and lead to structural issues. Additionally, consider using protective mats under the lift arms to minimize wear and tear on the floor, thereby extending its lifespan and maintaining its integrity.

Regularly check the tightness of the anchor bolts, as loose bolts can damage the concrete and render the hoist unsafe for operational use. This simple maintenance step can prevent costly repairs and ensure safe usage, making it a vital component of your overall maintenance routine.

Consider applying a sealant to the concrete to protect against stains and moisture. Such protective measures can significantly extend the lifespan of your concrete floor while also enhancing its appearance, making it a worthwhile investment that pays off in the long run.

Common Inquiries Regarding Car Hoist Installation and Concrete Requirements

Installing a car hoist requires careful consideration of the appropriate concrete thickness to ensure both safety and stability. Below, we address some frequently asked questions related to the concrete requirements for various types of lifts, providing clarity and insight into common concerns.

What is the minimum concrete thickness required for a two-post lift installation?

For a two-post lift, the recommended minimum thickness for the concrete slab is 100mm. This depth provides sufficient strength to support both the weight of the vehicles and the lift itself. Always consult the manufacturer's specifications, as certain models may require thicker slabs for safe operation. Adhering to these guidelines is crucial for optimal performance.

What specifications must a concrete slab meet for a four-post hoist installation?

Typically, a four-post hoist necessitates a concrete slab thickness ranging from 100mm to 150mm. The slab must be level and free of any cracks to ensure effective and safe operation. It’s wise to have a professional evaluate your floor to confirm that it meets the hoist’s installation requirements, providing you with peace of mind and ensuring safety.

Is it safe to install a car hoist on a concrete floor that is less than 100mm thick?

Installing a car hoist on a concrete floor that is less than 100mm thick is highly discouraged. Such thin slabs are likely to crack or fail under the weight, leading to significant safety hazards. If your existing floor does not meet the required thickness, it may be necessary to add a new layer of concrete to achieve the appropriate depth for safe operation. Prioritizing safety is essential in any installation.

What slab thickness is generally recommended for vehicle lift systems?

Most vehicle lift systems are best supported by a slab thickness of 100mm to 150mm. This range is suitable for both two-post and four-post hoists, ensuring adequate support for typical loads. For heavy-duty lifts or those intended for commercial applications, it may be necessary to consider an even thicker slab to guarantee safety and stability during use. This consideration can prevent future issues.

What weight can a 100mm thick concrete floor support during hoist operations?

A 100mm thick concrete floor is generally capable of supporting the weight of most passenger vehicles and light trucks when utilized with an appropriate hoist. However, the precise weight limit will depend on the specific concrete mix and reinforcement employed. It’s advisable to consult with a structural engineer for detailed load ratings tailored to your specific situation and requirements. This step ensures that you have the right setup for your needs.

What factors should be considered when calculating concrete thickness for heavy lifting equipment?

When determining the appropriate concrete thickness for heavy lifting equipment, consider the following crucial factors:

1. The weight of the heaviest vehicle you intend to lift
2. The type of hoist being installed
3. The soil conditions beneath your concrete slab
4. Any additional loads from tools or equipment that may be used in conjunction with the hoist

Seeking professional advice from our experts at Metro Booths is a smart choice. We can assist you in evaluating your site and ensuring the correct installation and setup of your hoist to maximize safety and efficiency. Our experienced team is dedicated to providing you with the support you need for a successful installation.
